SP1525
Soundsation

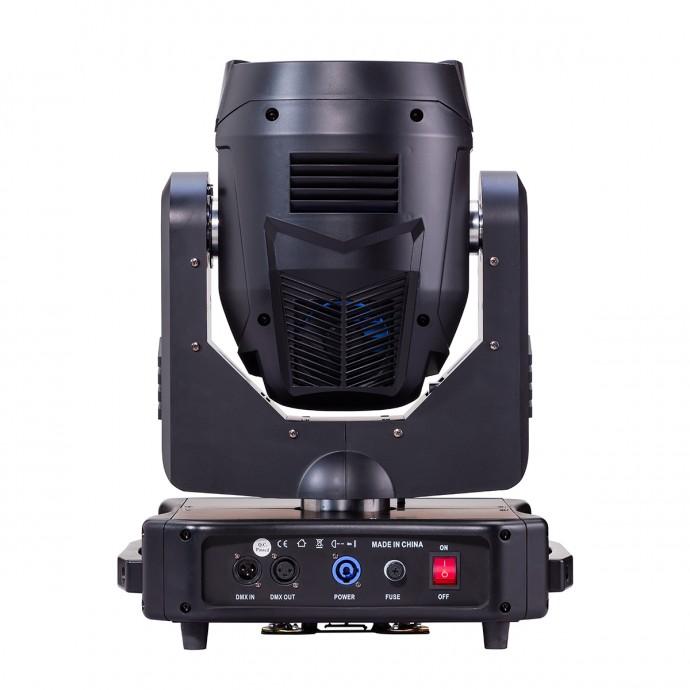

SPIRE 230 BEAM
Stok Kodu :
7R-230 BEAM SPOT
| Standard 7R (230W) metal-halide lamps | |
| Pan 540° / Tilt 265° indexing, high precision Pan/Tilt movement, with 16bit automatic error correction, extra speed movements | |
| 3-phase motor for both PAN and TILT with faster moving speed and low-noise | |
| Luminous Flux | up to 217.500 Lux@1m |
| 14+open color wheel with color correction devices. 2 CTO filters (3200K and 2500K) + 1 CTB filter, two-way rainbow effect, half color effects | |
| Gobo wheel | 11+open stamped fixed variable rotating metal gobos combine with 6 HQ dichroic / indexing / overlapping glass gobos; 3 beam diameter reducer filters on the fixed gobo wheel |
| Gobo-Shaking function | |
| Gobo motorized focusing | |
| Frost filter for soft-edge projections | |
| Two indexing / superimposed /rotating prisms (16-facet circular prism and 8-facet circular prism), which is able to superimposed on all the gobos, both in and out of focus | |
| Full Color, touch-sensible, 180° Reversible LCD Menu Display with Battery backup (setup operable by end user without connecting the unit to power) | |
| Lamp | Standard metal-halide 7R (230W) |
| Voltage | AC110V-240V |
| Frequency | 50/60Hz |
| Power Consumption | 380W |
| Fuse | F5A/250V (20x5mm) |
| Color Temperature | 8000K |
| Scan | Pan 540°, Tilt 265°, 16bit precision, photoelectric reset and correction |
| Shutter | 1-13t/s mechanical control and speed adjustable |
| Control | DMX512 |
| Channel Modes | 16CH /20CH switchable |
| Control Mode | DMX/Sound Active/Auto |
| Gobo wheel | 11 metal gobo + 6 glass gobo + open, electronic focus |
| Color wheel | 14+open, rainbow effect, electronic focus correction |
| Effect wheel | 8 facet prism + 16 facet linear prism, prism overlay and prism shaking |
| Frost | 0-100% linear frost |
| Display Battery | display board can be turned on without power to setup the unit |
| Fixture Size (LxHxD) | 270 x 500 x 326 mm |
| Packing Size (LxHxD) | 475 x 600 x 445 mm |
| Fixture Weight (1 Unit) | 17.1 kg |
| Gross Weight | 20.4 kg |
