BR-208
Soundsation
SCENESPLIT 6 TRUSS
Stok Kodu :

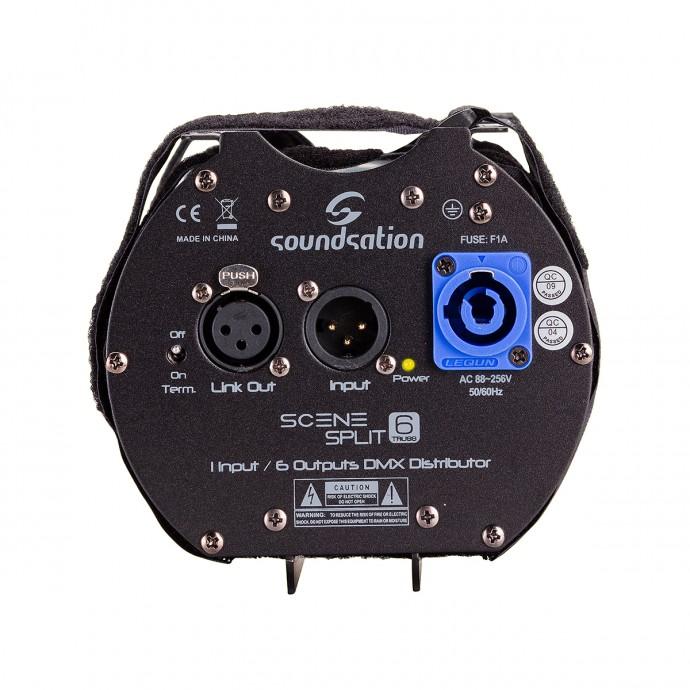

1 Input / 6 Outputs DMX Distributor
| Separate high voltage protection on each Outputs | |
| High quality power supply stage for maximum stability at wider range voltage input (from 88Ac to 256Vac) | |
| High quality Fairchild® optical coupler for maximum isolation | |
| Golden plated XLR Connector for improved conductivity |
| Power Input | AC88 ~ 256Vac 50/60Hz |
| Fuse | F1A - 250V |
| Protocols | DMX-512 |
| Data Input/Outputs | 3-pin XLR male (In) female (out) sockets |
| Data Pin Configuration | Pin 1 shield, Pin 2 (-), Pin 3 (+) |
| Distributor Size (WxHxD) | 186 x 124 x 128 mm |
| Net Weight | 0.85 kg |
| Packing Dimension (WxHxD) | 290 x 190 x 195 mm |
| Packing Gross Weight | 1.44 kg |
