T004 PINK
Soundsation
GO SOUND 12A
Stok Kodu :
880 Watt 12” Polypropylene Active Speaker
| 2-Way Active Speaker | |
| Sturdy polypropylene enclosure yet compact and lightweight | |
| 880 Watt class AB power amplifier | |
| 12" woofer with 1.35" compression driver | |

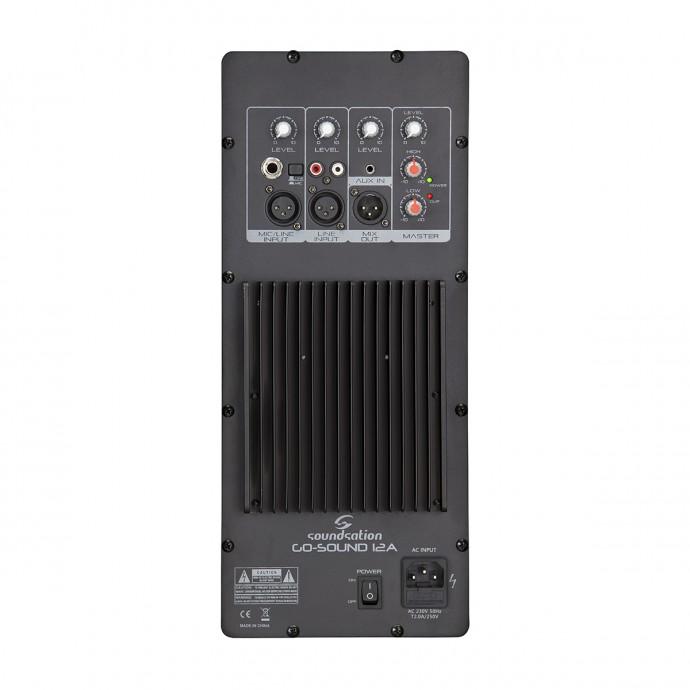

| Balanced microphone/Line inputs XLR + ¼” Jack, line inputs Stereo RCA + XLR, line input stereo Mini jack ideal to connect smartphones and tablets | |
| XLR line output | |
| Mic/line switch, volume and equalizer (Hi and Low) controls | |
| 36 mm standard pole mount | |
| 2 side handles and 1 on top for convenient carrying | |
| Speaker Dimension (WxHxD) | 375 x 588 x 320 mm |
| Weight | 12,2 Kg |
| 2-Way active speaker | |
| Woofer | 12" with 2" voice coil |
| Compression driver | 1.35” voice coil, 1” throat |
| Directivity | 90° x 50°, asymmetric |
| Frequency Response [- 3dB] | 60Hz - 18KHz |
| Frequency Response [- 10dB] | 55Hz - 18KHz |
| Max SPL(Peak) | 114dB |
| Sensitivity | 94dB |
| Class AB amplifier | |
| Power (Peak/Rated) | 880W/440W |
| Crossover | 3KHz, 24dB/Oct. |
| EQ | High (2.5KHz, +/- 12 dB); Low (150Hz, +/- 12 dB) |
| LEDs | Power On (Green), Clip (Red) |
| Power Requirement | 230Vac - 50 Hz |
| Minimum Power Consumption | 230W |
| Power Connector | VDE with T3.15A-250V Fuse |
| Speaker Dimension (WxHxD) | 375 x 588 x 320 mm |
| Weight | 12,2 Kg |
- AC964A98.pdf İndir
